Zero‑consumable self‑cleaning
Smart real‑time monitoring
FDA‑grade PC tank, autoclavable
316L stainless steel frame
High‑efficiency UV + bio‑filtration

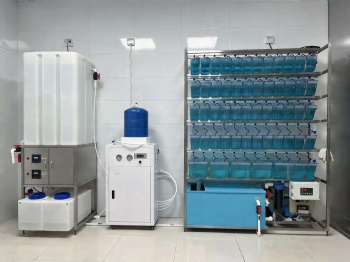

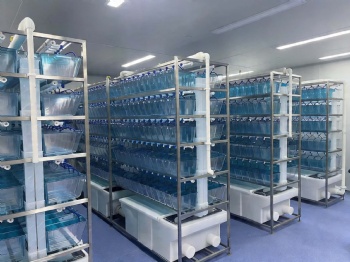

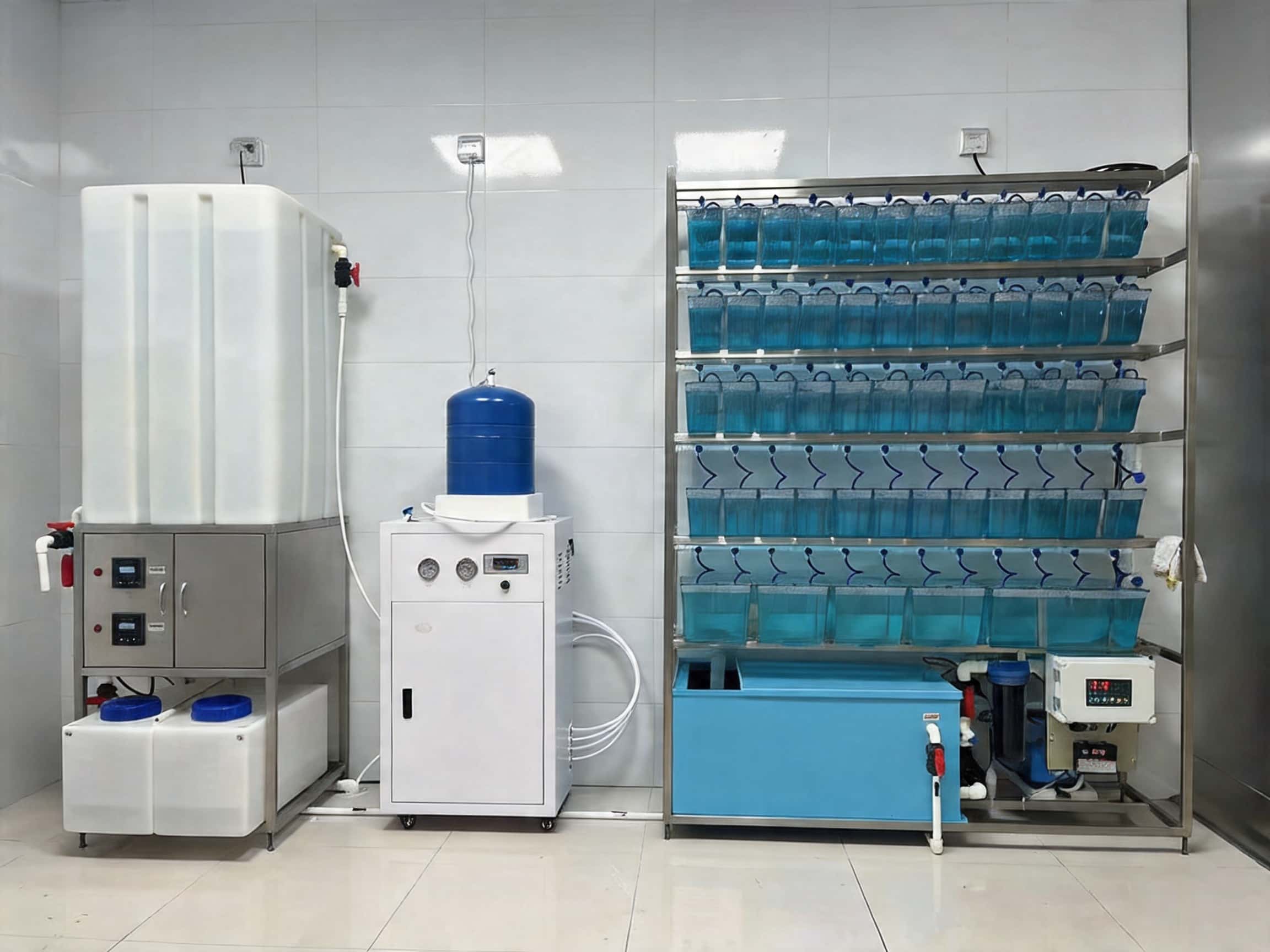

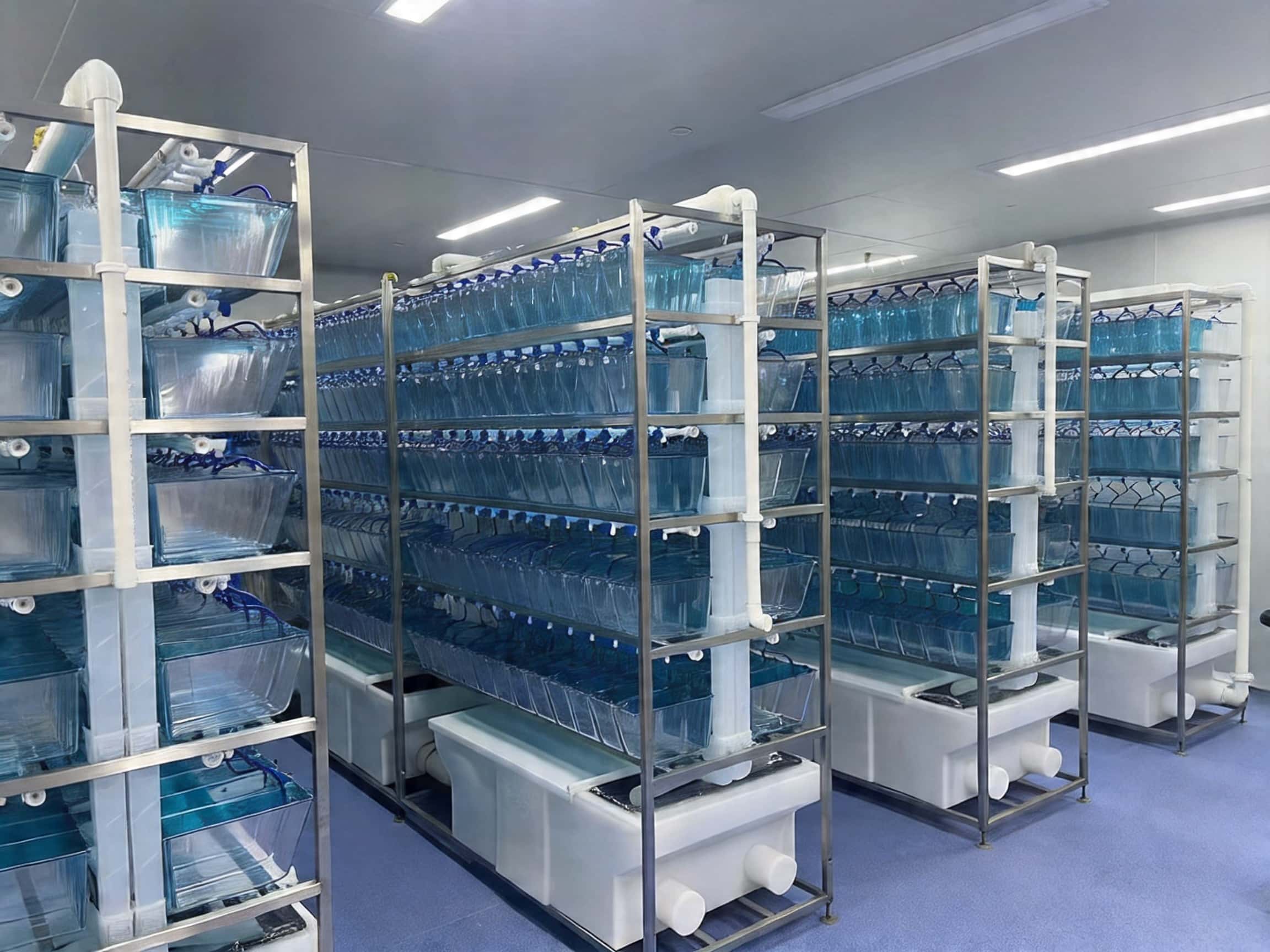

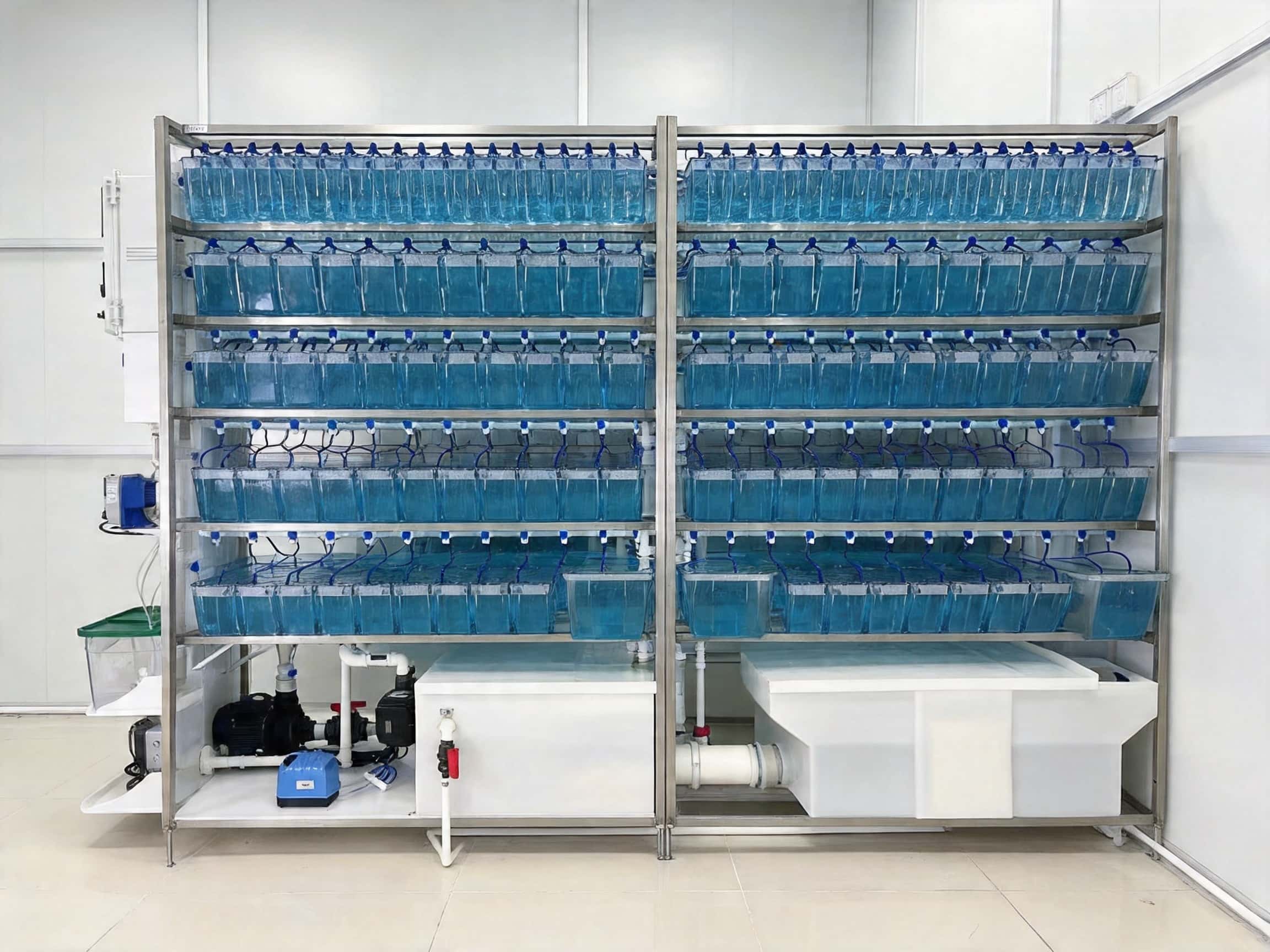

Rital Zebrafish Housing Systemare essential for developmental biology, drug screening, and toxicology research. Our system delivers stable water quality, automated control, and low-maintenance operation – from benchtop to multi-rack facilities.
Key Advantages：
Durable & Easy to Clean: SUS304/316L stainless steel frame, autoclavable PC tanks (1.5L–10L). V-shaped bottom reduces algae and debris buildup.
Zero-Consumable Filtration: Optional 40μm self-cleaning micro-filter removes solids without replacement parts. High-efficiency UV (Philips) + bio-chip media ensure optimal water chemistry.
Smart Monitoring: PLC touchscreen with real-time tracking of pH, conductivity, temperature, and pressure. Remote access via PC/mobile app.
Flexible Configurations: 3–5 tiers, single/double sided. Expandable from standalone to multi-rack systems. Optional pH/EC control, light cycle, RO water.
Applications: Breeding, rearing, disease models, drug screening, toxicology, genetics, aquaculture.
Specification：
| Parameter | Specification |
| Rack Material | SUS304 / 316L stainless steel (seawater compatible) |
| Number of Tiers | 3 – 5 tiers (optional) |
| Tank Material | PC (polycarbonate), transparent, autoclavable |
| Tank Sizes | 1.5L / 3L / 4L / 8L / 10L |
| Filtration System | Multi-stage (mechanical + biological), optional precision filter / sand filter |
| Sterilization | UV sterilization (Philips lamps) |
| Temperature Control | Digital controller + titanium heater, range 10 – 40°C |
| Aeration System | Ultra-quiet air pump + independent valves + air stones |
| Water Supply | Independent supply, each tank individually adjustable |
| Lighting System | T5 tri-color white light / LED dimmable, automatic timer |
| Recirculation Rate | ≥4 turnovers/hour |
| pH Monitoring Range | 7.2 – 8.6 |
| Conductivity Monitoring Range | 500 – 550 μs/cm |
| Water Quality Sensors | pH, conductivity, temperature, pressure |
| Control System | PLC + touchscreen, fully automatic, fail-safe |
Popular Demention：
| Model | Configuration | Tank Configuration | Rack Dimensions |
| Z-A-S3 | 3-tier, single-sided | 1.5L×20 / 3L×12 / 10L×6 | Custom |
| Z-A-S4 | 4-tier, single-sided | 1.5L×20 / 3L×12 / 3L×12 / 10L×6 | 1530×450×1980 mm |
| Z-A-S5 | 5-tier, single-sided | 1.5L×20 / 3L×12×3 tiers / 10L×6 | 1530×450×2100 mm |
| Z-A-D4 | 4-tier, double-sided | 1.5L×40 / 3L×24 / 10L×12 | 1540×700×1980 mm |
| Z-A-D5 | 5-tier, double-sided | 1.5L×40 / 3L×36 / 10L×12 | 1540×700×2100 mm |
| ZEBTEC | Multi-rack system | 3.5L×50 or 8L×25 or mixed | 1320×400×2030 mm |
